شروع کار با Shape Generator

To Start a Shape Generator Study

Directly start a Shape Generator Study:

  1. Open the part file of interest.
  2. On the ribbon ۳D Model tab > Explore panel, click  Shape Generator.
  3. The ribbon displays the tools for generating a shape and a new Shape Generator Study is created.
  4. To start a Shape Generator Study from within the Stress Analysis environment:
  5. Open the part file of interest.
  6. On the ribbon ۳D Model tab > Simulation panel, click Stress Analysis. The Stress Analysis environment can also be accessed from the Environments tab.
  7. On the Analysis tab > Manage panel, click Create Study.

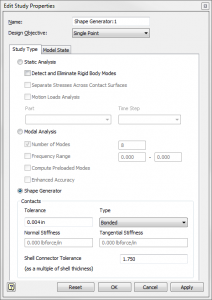

  8. In the Create New Studydialog, select Shape Generator and click OK
