Learn_3) تغییر نوع رزوه پیش فرض در ابزار Hole

  How to change default thread type of tapped hole dialog box

In Inventor part, when a hole feature is used and tapped hole selected, how is it possible to

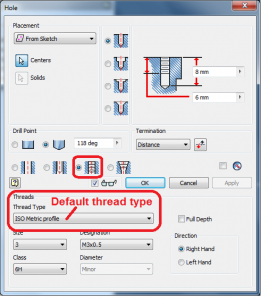

۱) change the thread type proposed by default in the Hole dialog box ?

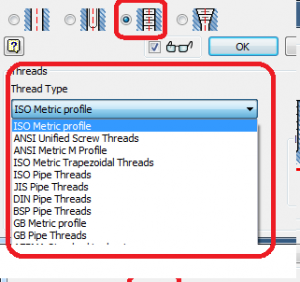

۲) change the order of the Thread types displayed in the drop-down list ?

Solution:

۱) According to project file, define localization of used thread.xls file (Note 1)
۲) Backup  original thread.xls file

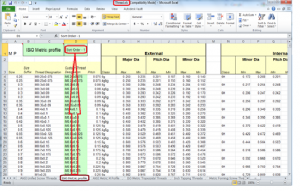

۳) Open thread.xls file in excel.
۴) in cell D1 “Sort order ” of each tab => change default value (Note 2)

۵) save xls file
۶) launch Inventor and generate a new part with a tapped hole.
=> the tab having now value “1” in thread.xls is displayed by default at first position in the dropdown list.

Note 1:  by default thread.xls is located at
C:\Users\Public\Documents\Autodesk\Inventor 2014\Design Data\XLS\ en-US  for  english  version
(or …\XLS\ fr-FR  for  french  version,….).
Note 2: Tab having ” Sort order value” =  “۱” will be the first thread type presented in the list (default), “2” will be in second position in the drop-down list ,….)
